Type MESA pump is a horizontal, end suction, single stage, radially split, foot support, magnetically driven process pump, designed for continuous operation in industrial processes. It complies with API 685 1st edition.
Zero leakage, i.e. hermetic sealed by a metallic containment shell. No buffer / supply systems required. Rub rings are provided to keep the outer magnet carrier from contacting the containment shell in the unlikely event of ball bearing failure.

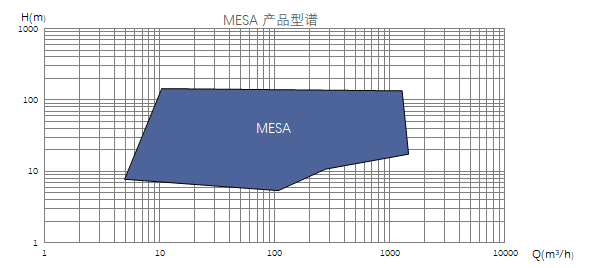

Capacities up to 1500 m3/h
Heads up to 160 m
Pressures up to 16 / 25 bar（depending on material and size）
Temperatures up to 180°C
Clean and lightly contaminated liquids
Viscous liquids
Fibrous slurries
Solids containing liquids
