THE ED-API series deep is horizontal, single stage, double suction pump, axial subdivision, near horizontal centerline, centrifugal pump, Meet the design requirements of the latest version of API610 BB1, ED-API inherits the traditional advantages of EDS series pump and on the basis of further development, relying on the deep rich experience in the field of design and production of the final developed ED-API pump reliably for a longer period of continuous operation, easy maintenance and many other advantages.
Symmetrical structure with self-balancing axial force.
Double volute construction for radial thrust balance.
Between bearing design for reliability at high flow rates.
Double suction impeller for low NPSH3.
Axial split structure, easy and quick maintenance without disassembling pump body and pipeline.
Shared bearing design and components with ED-W pump.

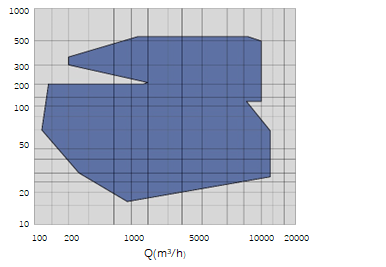

Capacities up to 10’000 m³/h
Heads up to 550 m
Pressures up to 150 bar
Temperatures up to 205°C
• Refineries
• Petrochemical plants
• Crude oil transportation
• Heavy duty auxiliary applications
• Medium pressure applications in desalination and water transport
