THE SCSK series pump is horizontal, axially split, opposed impeller, multi-stage pump. Meet the design requirements of the latest version of API 610 BB3. The product performance, quality and maintenance cycle are improved，reached the international advanced level.
Opposed impeller construction for axial thrust balance.
Double volute construction for radial thrust balance.
Pedestal mounted pump case near horizontal centerline.
Double suction, first-stage available on most sizes for reduced Net Positive Suction Head (NPSH).
The inlet and outlet flanges have the same pressure grade, full range of design pressures to suit applications.
Rich instrument supporting, to meet the user’s diverse monitoring needs.

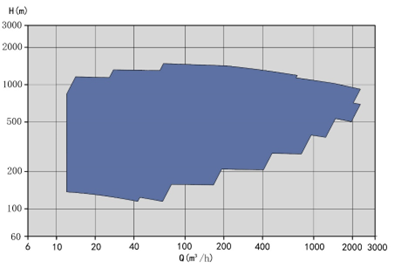

Capacities up to 2’200 m³/h
Heads up to 1500 m
Pressures up to 150 bar
Temperatures up to 200°C
• Refineries
• Petrochemical plants
• Crude oil transportation
• Coal chemical industry
• Industrial power plants
