BB5 Radially Split (Double casing) Pump-DCSZ

The DCSZ series  is BB5 multistage horizontal, double casing with radial split outer casing and inner casingback-to-back arranged Impellers. With the latest edition of API 610 and ISO 13709. The DCSZ pump can be used for transporting a variety of clean or mircorpartical liquid, suitable for high temperature, high pressure, flammable, explosive medium Conditions.



Get a quote

The barrel and suction/discharge nozzle flange are forged,can bear higher pressureoptional side-side, side-top nozzles on forged barrelThe inner case can be extracted from barrel, easy to repair and maintainThe impeller is arranged back-to-back, and the axial force of the rotor is self-balancedBall radial and 7300 series thrust bearings are standard. Pressure lubricated sleeve/pivot shoe bearings are optionalSeal chamber meets API682 requirements The high standardization design not only reduces inventory costs but also achieves the maximum interchangeability of components, thereby reducing the operating costs of the equipment throughout its life cycle.

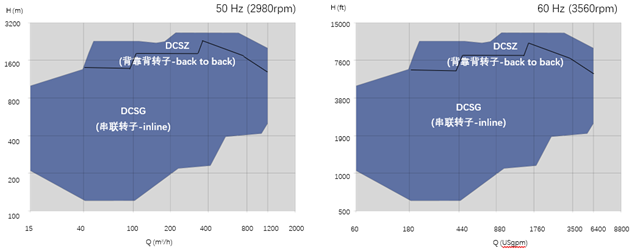

Capacities  up to 1200 m³/h

Heads  up to 3000 m

Pressures  up to 350 bar

Temperatures  -80 to 425°C

  Oil & Gas

  Petrochemical

  Power Generation

  Coal chemical industry

  Pulp & Paper

  Water and Wastewater

  General industry

  Fertilizers
